Sản phẩm

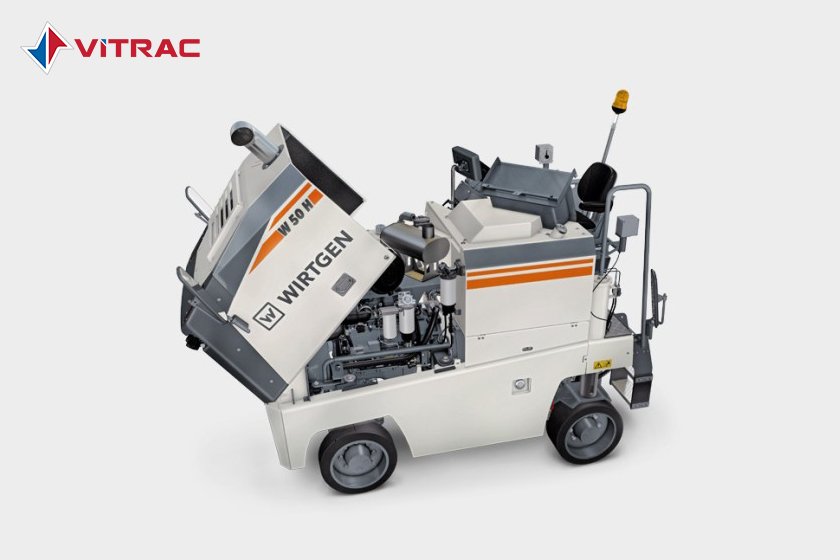

W 50 H


Bề rộng cào bóc 500 mm
Độ sâu cào bóc tối đa 180 mm
Công suất tối đa 82 kW / 111 HP
Trọng lượng vận hành, CE 5,805 kg
Tải Brochure W-50-H-Catalog.pdf

Các đặc điểm nổi bật


  • Máy cào bóc nguội Wirtgen W 50 H đa năng, mạnh mẽ để thực hiện bất kỳ hoạt động cào bóc nào một cách hiệu quả và tiết kiệm.
  • Máy đặc biệt tiết kiệm chi phí với mức tiêu thụ diesel và sử dụng công cụ.
  • Một loạt các trống cào khác nhau cho phép một loạt các ứng dụng.
  • Hệ thống cân bằng LEVEL PRO được tích hợp trong hệ thống quản lý máy, đảm bảo kết quả cào bóc chính xác.
  • Kích thước nhỏ gọn của máy và khái niệm vận chuyển thông minh thêm vào tính linh hoạt của việc sử dụng


Đơn giản và thoải mái khi vận hành


- Máy cào bóc W 50 H đơn giản và thoải mái khi vận hành.

- Màn hình hiển thị chất lượng cao.

- Mái che cứng bảo vệ

- Điều chỉnh chiều cao máy thủy lực với 2 chế độ cài đặt.





High precision levelling with LEVEL PRO

- Intuitive levelling

- Electronic slope sensor

- Milling depth control by means of tried-and-tested wire-rope sensors

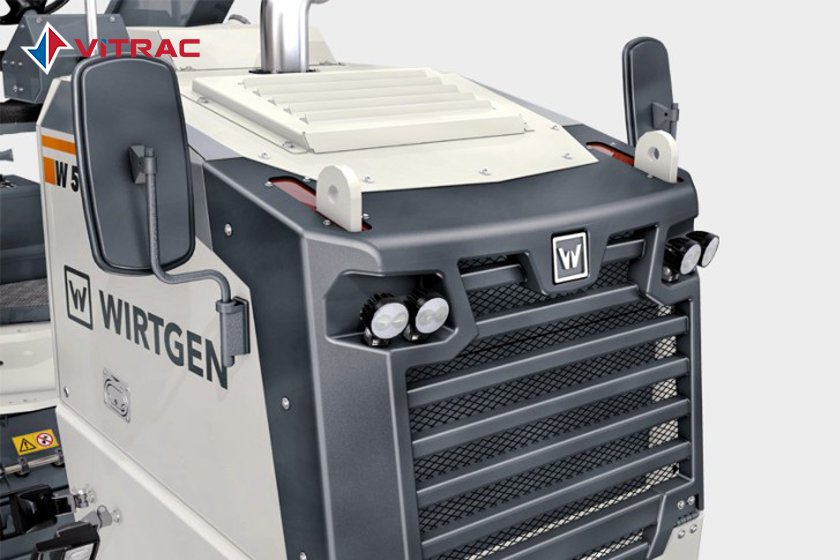

Outstanding visibility concept

- Perfect view ot the milling edge and important work areas

- Full illumination of the operator’s platform and controls

- Perfectly arranged working lights





Perfect traction and terrain mobility

- Standard four-wheel design for high machine stability

- Large ground clearance

- Powerfull all-wheel drive for maximum traction



Highest manoeuvrability

- Extremely small milling radii

- Short wheelbase ensures best manoeuvrability

- Travel speed up to 8 km / h

- Pivotable rear right support wheel for flush-to-kerb milling

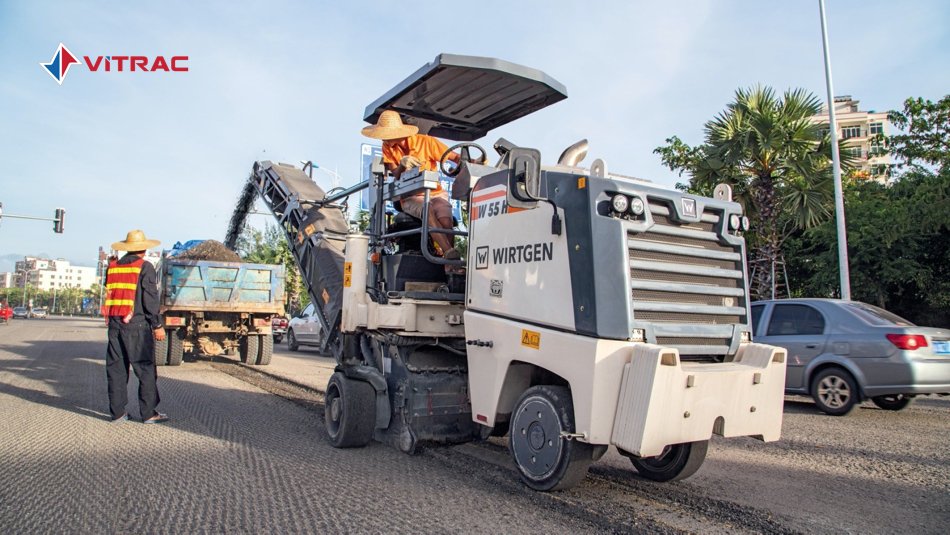

Material loading with discharge conveyor

- Fast and easy to assemble and disassemble

- Flexible loading regardless of the job situation

- High capacity conveyor





All-time high milling performance

- Powerful diesel engine for maximum milling performance

- Extremely low centre of gravity and optimum weight distribution

- Centrally arranged water tank for neutral milling behaviour

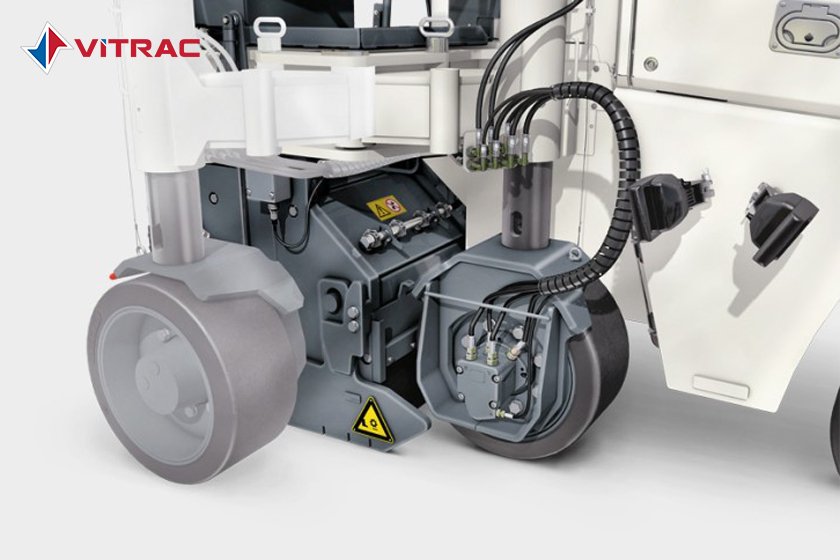

New milling drum assembly ensures maximum performance

- New milling drum design with highly wear-resistant HT08 toolholder system

- Different milling drums for wide range of applications available

- Extremely robust milling drum gearbox

- Powerful water spray system at the milling drum

- Dual hydraulically lifting side plate

- Supplementary weights for flexible weight adjustment





Easy to transport and service

- Extremely compact machine design

- Sturdy loading and lashing lugs for simple loading by crane

- All service points easily accessible

Thông số kỹ thuật


Bề rộng cào bóc mm 500
Độ sâu cào bóc tối đa
mm 180
Tiêu chuẩn khí thải
EU Stage 3a / US Tier 3
Công suất tối đa kW/HP
82/111
Tốc độ cào bóc tối đa
m/min
30.5
Trọng lượng vận hành, CE
kg
5,805
