    Everdigm products

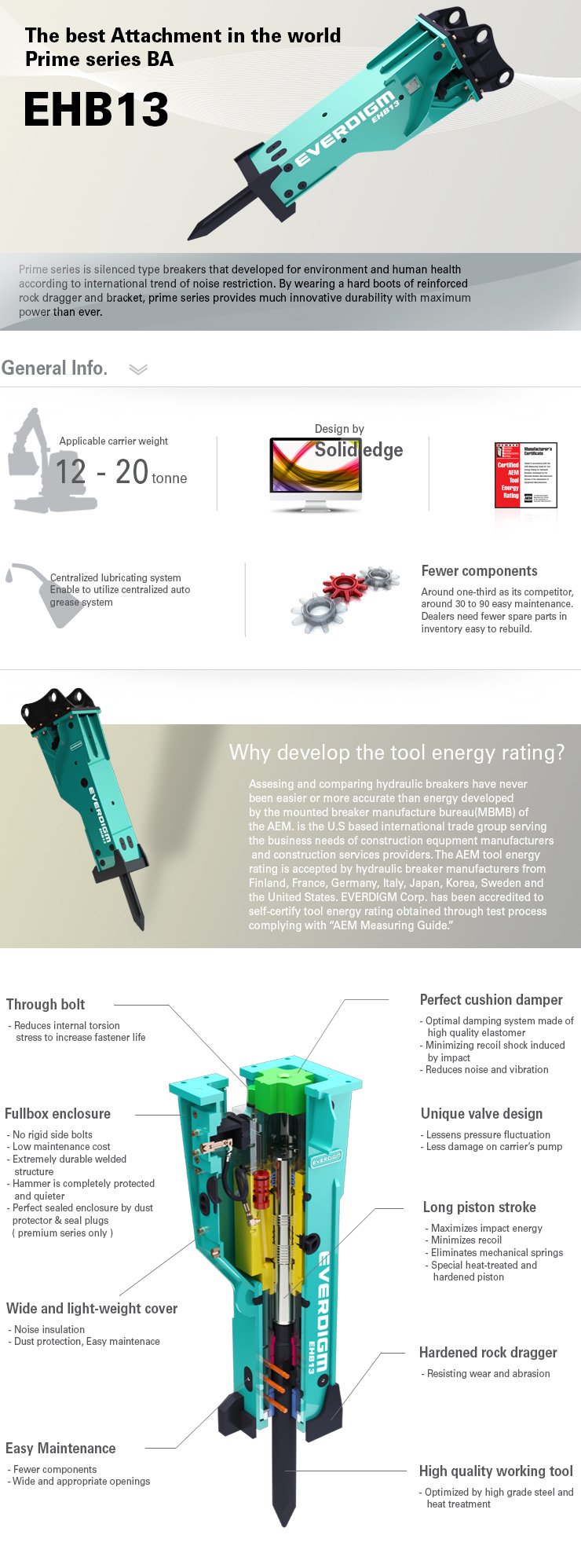

    EHB13

    Working height 8,333 kg
    Applicable carrier weigh 12 - 20 ton
    Tool shank diameter 105 mm


    Contact

    • Reduces internal torsion stress to increase fastener life.
    • No rigid side bolts
    • Low maintenance cost
    • Extremely durable welded structure
    • Reduces noise
    • Hammer is completely protected and quieter
    • Perfect sealed enclosure by dust protector & seal plugs(premium series only)
    • Fewer components
    • Wide and appropriate openings
    • Optimized by high grade steel and heat treatment
    • Optimal damping system made of high quality elastomer
    • Minimizing recoil shock induced by impact
    • Reduces noise and vibration
    • Lessens pressure fluctuation
    • Less damage on carrier’s pump
    • Noise insulation
    • Dust protection, Easy maintenance
    • Maximizes impact energy
    • Minimizes recoil
    • Eliminates mechanical springs
    • Special heat-treated and hardened piston
    • Resisting wear and abrasion


    Specifications

     ITEM  UNIT EHB13
     Working weight
    		  kg 1,040
     Required oil flow
    		 lpm 80 - 140
     Operating pressure  bar 140 - 180
     Blow frequenc
    		   Low speed mode  bpm 380 - 700
      High speed mode  bpm 550 - 850
      Low speed mode  joule 2,500
      High speed mode  joule 2,150
     Tool shank diameter  mm 105
     Applicable carrier weigh  mm 12 - 20
