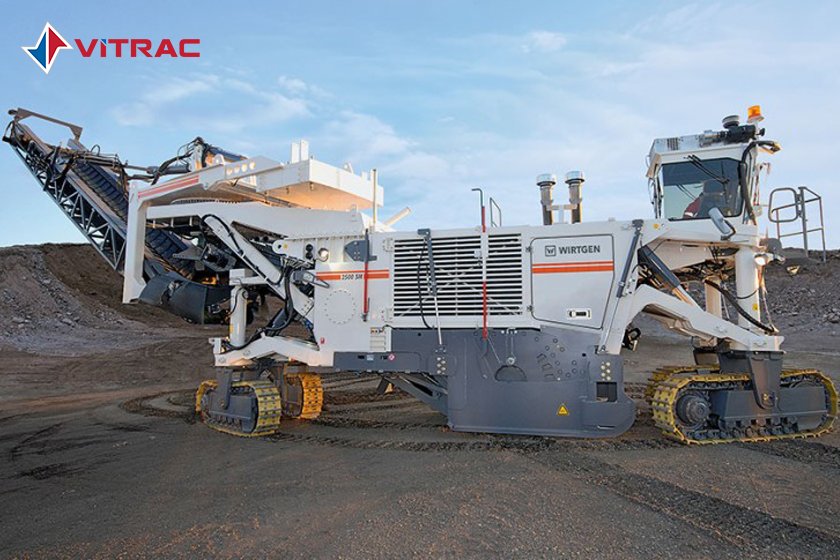

2500 SM

Operating weight 111,600 kg
Engine Power 783 kW
Emission Standard US Canada EPA Tier 2, outside US EPA Tier 1
Tải Brochure 2500-SM-Catalog.pdf

Các đặc điểm nổi bật

  • The powerful surface miner is used for the selective mining of raw materials with an unconfined compressive strength of up to 80 MPa and for routing operations

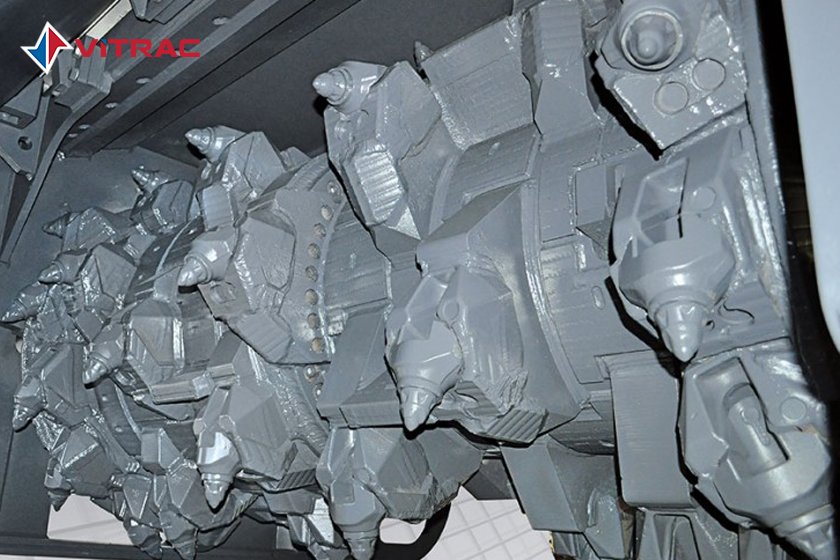

  • The 2.50 m cutting drum unit – tailored precisely to the specified application – with a cutting depth of 650 mm guarantees high production rates at minimum tool wear.

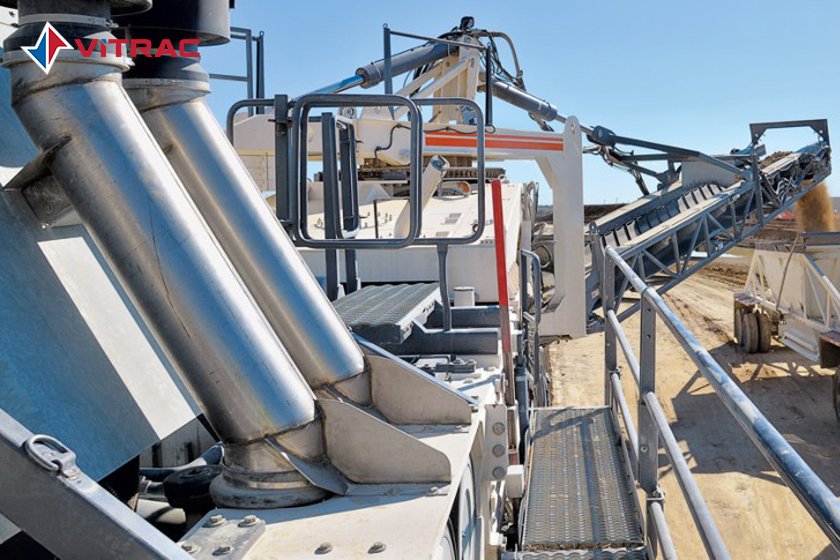

  • Trucks with a load capacity of between 40 and 120 tons can be loaded using the powerful liftable and slewable rear-loading conveyor.
  • Individually height-adjustable and steerable crawler units enable optimum manoeuvrability.

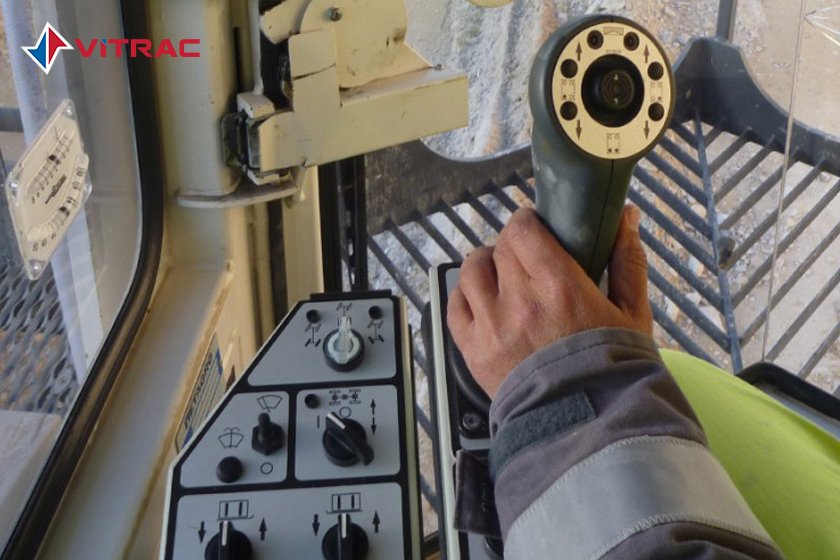

  • The fully glazed operator's cabin offers heating and air-conditioning, soundproofing and anti-vibration mounting to ensure non-tiring, productive machine operation.

Các kích thước

Cuttting width mm 2500
Cuttting depth mm  0 - 650
